CThis post represents the solution and explanation for quiz-23.
Have a look at the quiz and test your knowledge before reading this solution.

Quiz Review

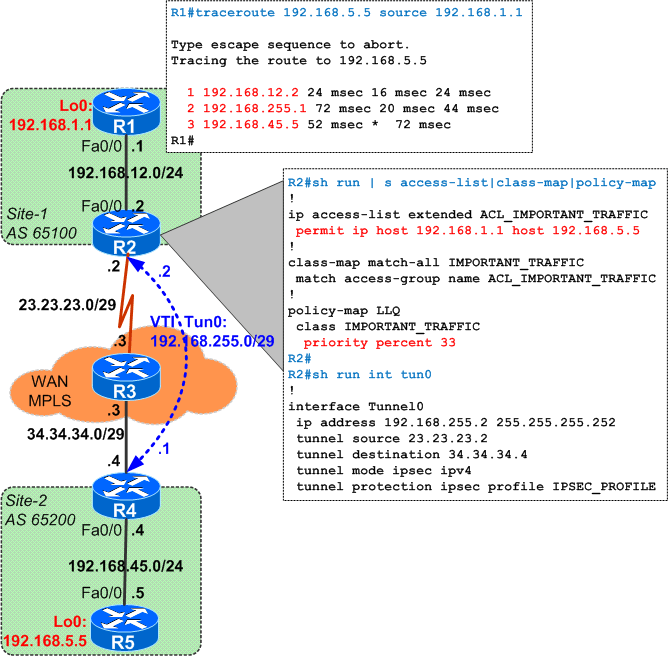

The quiz shows a scenario where the network engineer has to configure Low Latency Queuing (LLQ) for some traffic that will be encrypted into an IPsec tunnel.
The configuration of the policy-map is given but it has not been applied yet anywhere, as shown below:

quiz-23

The final question is "what is missing to finish this task ?" giving the impression that the answer to the quiz is very simple: apply the policy-map...

Where to Apply the Service Policy

Unfortunately, the answer is not that simple...
1. applying the policy-map onto the physical interface

R2#conf t
R2(config-if)#int s0/0
R2(config-if)#service-policy output LLQ
R2(config-if)#end

This configuration does not have the effect that we want because the ACL searches for traffic between host 192.168.1.1 and host 192.168.5.5 (the inner header), but the policy-map sees only the outer header of the tunnel.
See the zero counters (after sending 100 pings from 192.168.1.1 to 192.168.5.5 via the tunnel):

R2#sh policy-map int
 Serial0/0

  Service-policy output: LLQ

    Class-map: IMPORTANT_TRAFFIC (match-all)
      0 packets, 0 bytes
      5 minute offered rate 0 bps, drop rate 0 bps
      Match: access-group name ACL_IMPORTANT_TRAFFIC
      Queueing
        Strict Priority
        Output Queue: Conversation 264
        Bandwidth 33 (%)
        Bandwidth 509 (kbps) Burst 12725 (Bytes)
        (pkts matched/bytes matched) 0/0
        (total drops/bytes drops) 0/0

    Class-map: class-default (match-any)
      101 packets, 15624 bytes
      5 minute offered rate 2000 bps, drop rate 0 bps
      Match: any
R2#

2. applying the policy-map onto the tunnel interface
At first look, this would represent the correct solution and it might work with a different type of policy-map, but not with a Class Based Weighted Fair Queueing (CBWFQ):

R2(config)#int tun0
R2(config-if)#service-policy output LLQ
*Mar  1 00:02:08.547: Class Based Weighted Fair Queueing not supported on interface Tunnel0
R2(config-if)#end

As you can see, the IOS parser does not accept the LLQ policy-map to be applied directly onto the VTI (Tunnel0) interface.
On Cisco, logical interfaces (tunnel interfaces, sub-interfaces, etc) do not understand the state of concestion (since they are logical) and as a result you cannot apply a queueing mechanism. There is a workaround as described later on.

Solutions

There is a workaround for each of the two situations described above:

1. QoS Pre-Classify - applying the policy-map onto the physical interface

The recommended solution for this quiz is to use the QoS Pre-Classify feature and apply the policy-map to the physical interface.
This features tells the router to keep a temporary copy of the packet's header in its memory (the inner header, before encapsulation and/or encryption) and use it to make QoS decisions such as priority queueing or classification.

R2#conf t
R2(config-if)#int s0/0
R2(config-if)#service-policy output LLQ
!
!
R2(config)#int tun0
R2(config-if)#qos ?
  pre-classify  Enable QOS classification before packets are tunnel
                encapsulated

R2(config-if)#qos pre-classify
R2#sh policy-map interface
 Serial0/0

  Service-policy output: LLQ

    Class-map: IMPORTANT_TRAFFIC (match-all)
      100 packets, 15600 bytes
      5 minute offered rate 2000 bps, drop rate 0 bps
      Match: access-group name ACL_IMPORTANT_TRAFFIC
      Queueing
        Strict Priority
        Output Queue: Conversation 264
        Bandwidth 33 (%)
        Bandwidth 509 (kbps) Burst 12725 (Bytes)
        (pkts matched/bytes matched) 0/0
        (total drops/bytes drops) 0/0

    Class-map: class-default (match-any)
      1 packets, 24 bytes
      5 minute offered rate 0 bps, drop rate 0 bps
      Match: any
R2#
    The qos pre-classify feature can be applied either to the tunnel interface or to crypto-maps (for IPsec tunnels).

2. Hierarchical Queueing Framework (HQF) - applying the policy-map onto the tunnel interface

The workaround mentioned for the above scenario #2 is to configure a hierarchical QoS (HQF) service policy that will can be applied to the logical (Tunnel0) interface.

R2#conf t
R2(config)#policy-map HQF
R2(config-pmap)#class class-default
R2(config-pmap-c)#shape average 1544000
R2(config-pmap-c)#service-policy LLQ
R2(config-pmap-c)#exit
R2(config-pmap)#exit
R2(config)#int tun0
R2(config-if)#service-policy output HQF
R2(config-if)#exit
R2#sh policy-map interface
 Tunnel0

  Service-policy output: HQF

    Class-map: class-default (match-any)
      102 packets, 10499 bytes
      5 minute offered rate 2000 bps, drop rate 0 bps
      Match: any
      Traffic Shaping
           Target/Average   Byte   Sustain   Excess    Interval  Increment
             Rate           Limit  bits/int  bits/int  (ms)      (bytes)
          1544000/1544000   9650   38600     38600     25        4825

        Adapt  Queue     Packets   Bytes     Packets   Bytes     Shaping
        Active Depth                         Delayed   Delayed   Active
        -      0         102       10099     0         0         no

      Service-policy : LLQ

        Class-map: IMPORTANT_TRAFFIC (match-all)
          100 packets, 10400 bytes
          5 minute offered rate 2000 bps, drop rate 0 bps
          Match: access-group name ACL_IMPORTANT_TRAFFIC
          Queueing
            Strict Priority
            Output Queue: Conversation 72
            Bandwidth 33 (%)
            Bandwidth 509 (kbps) Burst 12725 (Bytes)
            (pkts matched/bytes matched) 0/0
            (total drops/bytes drops) 0/0

        Class-map: class-default (match-any)
          2 packets, 99 bytes
          5 minute offered rate 0 bps, drop rate 0 bps
          Match: any
REMEMBER

Since HQF is a logical engine, it needs shaping to be configured in order to be able to provide other QoS functions.

Some final notes:

  • each of the above solutions have pro's and con's in specific scenarios and you may need to evaluate them before choosing the right solution
  • be aware that on some platforms (low end ones, usually) using shape command on the tunnel interfaces might cause high CPU problems
  • applying the service policy on the physical interface does account for the tunnel overhead
